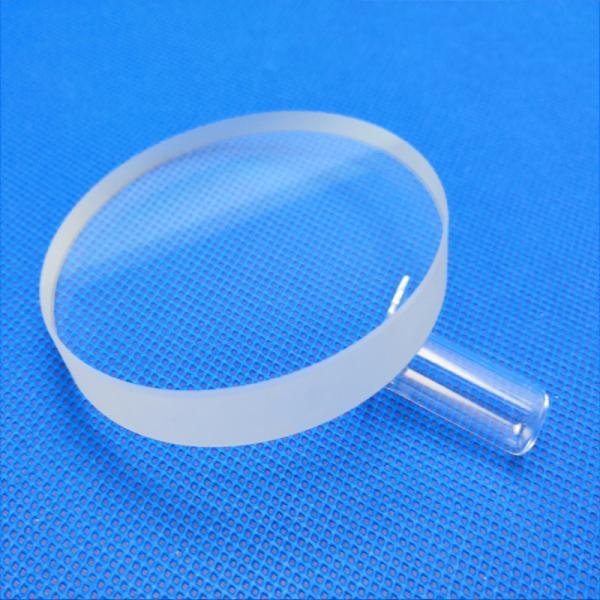

Quartz Glass Plate Optical Plate Custom

Brand Name : ZKTD

Model Number : OEM

Certification : SGS,ISO

Place of Origin : CHINA

MOQ : 1pc

Price : US$1-$50

Payment Terms : L/C,T/T

Supply Ability : 100000000pcs/week

Delivery Time : 5-8 work day

Packaging Details : Wooden box

Material : Fused Silica

Applications : Optical

Surface : Polished

Contact Now

Quartz Glass Plate Optical Plate Custom


Synthetic Quartz Property
Density 1.92*103kg/m3
Compression Strength >1.0*109Pa(N/m2)
Coefficient of Thermal Expansion 5.4*10-7cm/cm°C
Thermal Conductivity LOW
Specific Heat 640J/kg°C
Softening point 1600°C
Annealing point 1050°C


Specification Of ZCQ Supply Synthetic Quartz Plate

Parameter Standard Grade Precision Grade Ultra-precision Grade
Dimensional Tolerance +/-0.1 +/-0.1 +/-0.1
Clear Aperture >80% to >90% >80% to >90% >80% to >90%
Surface Quality 60-40 40-20 20-10 to 10-5
Parallelism 1 arc min 30 arc seconds 1 arc min
Wavefront Distortion 1λper 25mm λ/4 λ/10
Protective Bevel <0.25x45 deg <0.25x45 deg <0.25x45 deg
Coating Optional Optional Optional
Dimension Depends on material
Thickness Depends on material


Quartz Glass Plate Optical Plate Custom
